PCAP

PCAP, pcap_name, capa_label, type, b_opt, target_body, ref_nr, layer_nr, p1, p2, p3, ... , pn, orient_ang, fill_fact;

Creates a primitive for a parallel plate capacitor

  • Parallel plate capacitors are assembled from several primitives (rect, circ, elps, tria, poly) defined by the type-parameter.
  • Boolean operations are applied to all elements in the same group. Group elements have the same target_body number, ref_nr and layer_nr. The capa_label of all group elements must be the same.
  • If the capa_label of different groups is the same, capacitances are combined to a single capacitance value.
  • The target_body number refers to the mass body reference number of the moving conductor.
  • The ref_nr is used to create individual capacitances acting in the same target_body number and layer_nr.
  • The layer_nr is used to calculate the electrode gap to moving mass bodies at the initial position (see LAYR command).
  • Parallel plate primitives consider out-of-plane and in-plane motion components. The capacitance change of in-plane motion components is linearized at the initial position. The influence of perforations holes (see PERF command) is taken into account but fringing fields in holes and outside the plate area are ignored.
  • Perforations holes reduce the plate area and associated capacitances. An area fill factor fill_fact can be used to scale the capacitances of the primitive. Area fill factors less than one are commonly used to defined an effective area in models where the perforations are ignored. Alternatively, area fill factors greater than one are used to account for the influence of fringing fields in perforation holes, which increases the capacitances.

Input Data⚓︎

Parameter Description
pcap_name Reference name of the parallel plate primitive
→ Alphanumeric name, has to start with a letter
capa_label Capacitance label of the parallel plate primitive
→ Alphanumeric label, has to start with a letter
type Type of the parallel plate element (primitive)
Available types:
rect = Rectangular primitive
circ = Circular primitive
elps = Elliptical primitive
tria = Triangular primitive
poly = Polygonal primitive
b_opt Type of the Boolean operation
add - Add the area of the primitive to a capacitance
sub - Subtract the area of the primitive from a capacitance
target_body Target mass body number to define the moving conductor
→ Integer > 0, related to the specified mass body
ref_nr Reference number to create different capacitances on the same target mass and the same layer
→ Integer > 0
layer_nr Layer reference number to define the electrode gap
→ Integer > 1, related to the specified layer


type = rect (see RECT command)

Parameter Description
p1 X-coordinate of the connecting point for rectangular primitives
p2 Y-coordinate of the connecting point for rectangular primitives
p3 Length (x-direction) of the rectangular primitive (can be negative)
p4 Height (y-direction) of the rectangular primitive (can be negative)
orient_ang Orientation angle in degrees at the connecting point: 0 ≤ orient_ang ≤ 360
fill_fact Area fill factor of the primitive
→ > 0, Default = 1


type = circ (see CIRC command)

Parameter Description
p1 X-coordinate of the center point (connecting point)
p2 Y-coordinate of the center point (connecting point)
p3 First radius of circular primitive
p4 Second radius of circular primitive
→ If empty or p4=0, it defines a solid circle
p5 Starting angle of the circular segment: 0 ≤ phi1 < 360
p6 Span angle of the circular segment: 0 < phi2 ≤ 360
orient_ang Orientation angle in degrees at the connecting point: 0 ≤ orient_ang < 360
fill_fact Area fill factor of the primitive
→ > 0, Default = 1


type = elps (see ELPS command)

Parameter Description
p1 X-coordinate of the center point (connecting point)
p2 Y-coordinate of the center point (connecting point)
p3 Radius in x-direction of the non-rotated ellipse
p4 Radius in y-direction of the non-rotated ellipse
p5 Starting angle of the circular segment: 0 ≤ phi1 < 360
p6 Span angle of the circular segment: 0 < phi1 ≤ 360
orient_ang Orientation angle in degrees at the connecting point: 0 ≤ orient_ang < 360
fill_fact Area fill factor of the primitive
→ > 0, Default = 1


type = tria (see TRIA command)

Parameter Description
p1 X-coordinate of the first point (connecting point)
p2 Y-coordinate of the first point (connecting point)
p3 Second x-coordinate of the primitive
p4 Second y-coordinate of the primitive
p5 Third x-coordinate of the primitive
p6 Third y-coordinate of the primitive
orient_ang Orientation angle in degrees at the connecting point: 0 ≤ orient_ang ≤ 360
fill_fact Area fill factor of the primitive
→ > 0, Default = 1


type = poly (see POLY command)

Parameter Description
p1 Total number of polygon points
p2 X-coordinate of the first point (connecting point)
p3 Y-coordinate of the first point (connecting point)
p4 Second x-coordinate of the primitive
p5 Second y-coordinate of the primitive
…, pn Further pairs of x-y-coordinates
orient_ang Orientation angle in degrees at the connecting point: 0 ≤ orient_ang < 360
fill_fact Area fill factor of the primitive
→ > 0, Default = 1

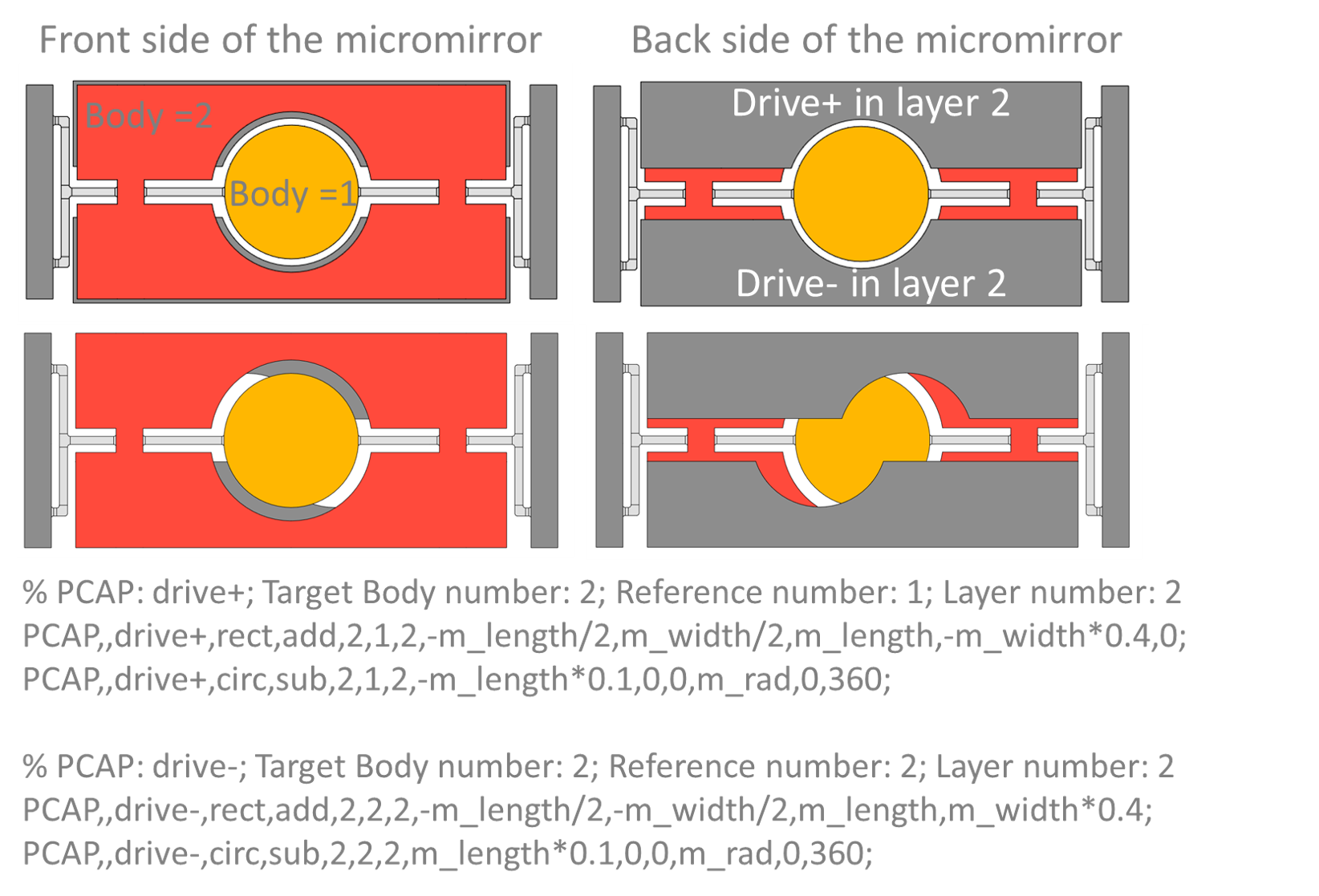

The following figure shows an example where different reference numbers (ref_nr) are necessary for modeling of bottom plate capacitors.

The micromirrors consist of two mass bodies, the inner mirror mass with body reference number 1 and the outer actuation mass with body number 2.

The upper drive capacitor (drive+) acts on mass body 2 (target mass) and is placed in layer 2. The lower drive capacitor (drive-) acts on the same mass body and is placed in the same layer. Each capacitor is modeled by a rectangular primitive and a circular cut.

In the lower figures, the circular cuts are shifted to the left and to the right to demonstrate that Boolean operations are only applied to primitives in the same group.

Parallel plate capacitors with different reference numbers

Figure 1. Parallel plate capacitors with different reference numbers
