POLY

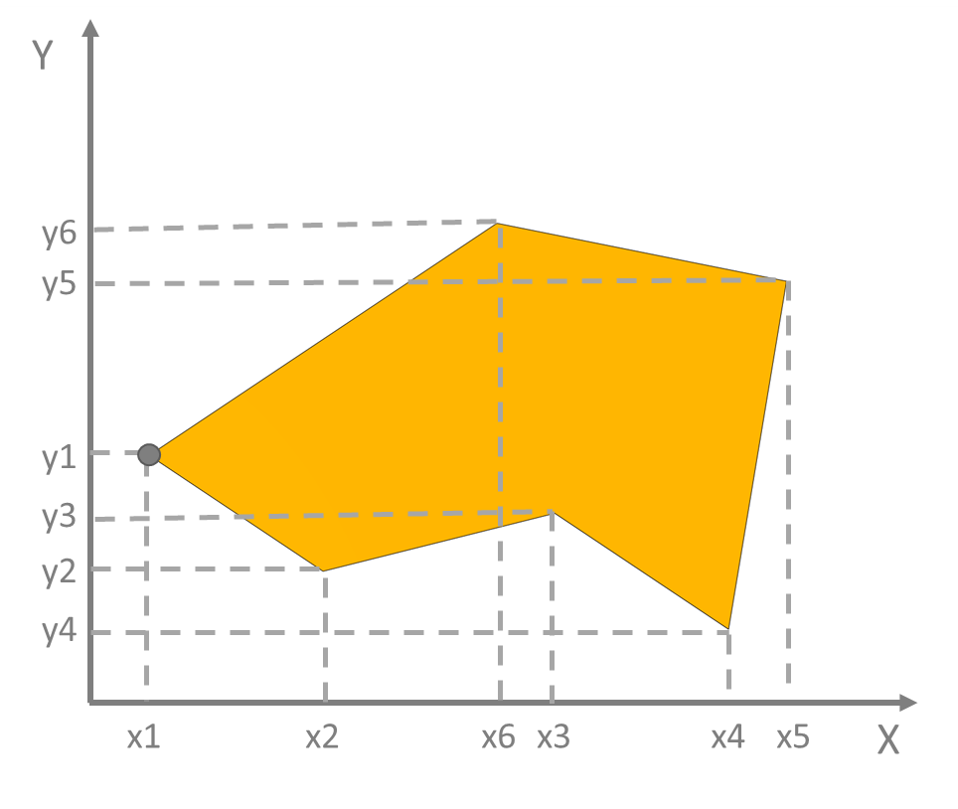

POLY, poly_name, b_opt, body_nr, mat_nr, layer_nr, x1, y1, x2, y2, ... xn, yn; orient_ang;

Creates a polygonal primitive for mass bodies or anchors

Input Data⚓︎

Parameter	Description
`poly_name`	Reference name of the primitive (can be empty) → Alphanumeric name, has to start with a letter
`b_opt`	Type of the Boolean operation `add` → Add a primitive to the mass body or anchor `sub` → Subtract a primitive from a mass body or anchor
`body_nr`	Reference number of related mass body or anchor → If 0 → The primitive is related to anchors → If > 0 → The primitive is related to the specified mass body
`mat_nr`	Reference number of the material properties → Use existing material properties only (see MATP command)
`layer_nr`	Layer number (the current version supports only one layer) → If empty, the primitive is part of the first layer
`x1`	First x-Coordinate of the primitive
`y1`	First y-Coordinate of the primitive
`x2`	Second x-coordinate of the primitive
`y2`	Second y-coordinate of the primitive
`...`	Further pairs of x-y-coordinates
`xn`	n-th x-coordinate of the primitive
`yn`	n-th y-coordinate of the primitive
`orient_ang`	Orientation angle in degrees at the connecting point: 0 ≤ `orient_ang` < 360
