RECT

RECT, rect_name, b_opt, body_nr, mat_nr, layer_nr, x, y, length, height, orient_ang;

Creates a rectangular primitive for mass bodies or anchors

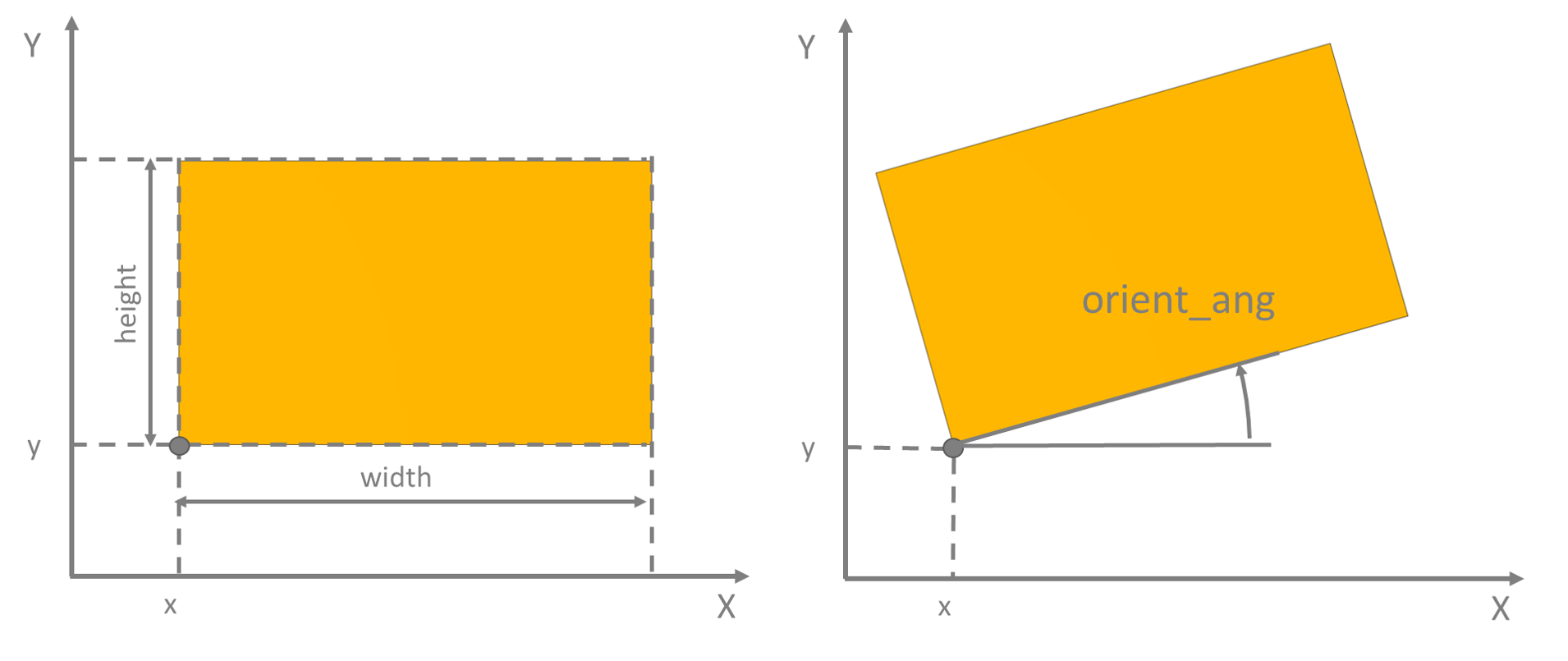

The rectangular primitive is defined by a connecting point, length in x-direction and height in y-direction. The orientation angle can be used to rotate the rectangle around the connecting point.
Mass bodies and anchors may be assembled from several primitives with different material reference numbers.

Input Data⚓︎

Parameter	Description
`rect_name`	Reference name of the primitive (can be empty) → Alphanumeric name, has to start with a letter
`b_opt`	Type of the Boolean operation →`add` - Add a primitive to the mass body or anchor →`sub` - Subtract a primitive from a mass body or anchor
`body_nr`	Reference number of related mass body or anchor → If 0, the primitive is related to anchors → If > 0, the primitive is related to the specified mass body
`mat_nr`	Reference number of the material properties → Use existing material properties only (see MATP command)
`layer_nr`	Layer number (the current version supports only one layer) → If empty, the primitive is part of the first layer
`x`	X-coordinate of the connecting point for rectangular primitives
`y`	Y-coordinate of the connecting point for rectangular primitives
`length`	Length (x-direction) of the rectangular primitive (can be negative)
`height`	Height (y-direction) of the rectangular primitive (can be negative)
`orient_ang`	Orientation angle in degrees at the connecting point: 0 ≤ `orient_ang` < 360
